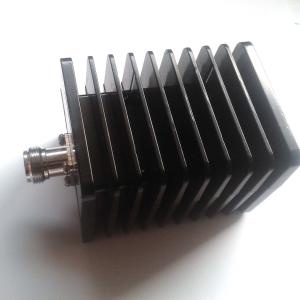

DC 12.4GHz Microwave Fixed Attenuator 50ohm Coaxial Line Fixed Attenuator

Product Categories
Chengdu Zysen Technology Co., Ltd.
Contact Now

DC 12.4GHz Microwave Fixed Attenuator 50ohm Coaxial Line Fixed Attenuator

Model Number : ZSJXX-50SN-xT

Place of Origin : Chengdu,China

power handling : 50W

attenuaiton : 1-50dB

VSWR : 1.2~1.45

Housing : Aluminum, Black Anodize

Brand Name : Zysen

MOQ : 1pc

Delivery Time : 2-4 Weeks

Price : Negotiable

Payment Terms : T/T, L/C,D/A

Certification : ISO9001

Contact Now

DC-18GHz,DC-12.4,DC-6GHz,DC-3GHz 50Watts Fixed Attenuator

Zysen's 50W attenuators available with DC-3GHz, DC-6GHz, DC-12.4GHz, DC-18GHz, 50 impedance & SMA, N Female/Male connectors. Available with 1, 3, 6, 10, 20 , 30dB&40dB to 50dB attenutation.

  • Electrical Specifications
Frequency Range DC – 6GHz
Power 50W CW @ 25~70ºC
Attenuation 1~10dB 20dB 30dB 40dB 50~60dB
Attenuation Accuracy ±0.8dB max ±0.9dB max ±1.1dB max ±1.2dB max ±1.3dB max
VSWR

1.20 max @ DC-4GHz

1.25 max @ 4-8GHz,
Impedance 50ohm
Input Connector N-Male
Output Connector N-Female
Temperature Range -55ºC ~ +125ºC
  • Mechanical Specification (for reference)
Connector Material Cu
Housing Aluminum, Black Anodize
